Ultra-HD Video Quality
Supports up to 4K@60Hz 4:4:4 with HDMI 2.0b and HDCP 2.2 compliance, including HDR10,
HDR10+,
HLG, and Dolby
Vision. -
Seamless Switching
Instant switching without black screens or tearing, ensuring uninterrupted visual
performance. -
Multi-View Display Modes
Supports Auto, Single, PIP, PBP, Triple, Quad, and custom layouts for flexible display
management. -
Comprehensive Connectivity
4 HDMI inputs with loop outputs, dual HDMI outputs, USB 3.2 capture, optical and analog
audio
outputs. -
Advanced Audio Management
Audio de-embedding with optical and analog outputs, plus HDR-to-SDR conversion for
compatibility. -
Flexible Control Options
Control via front panel, IR remote, RS-232, TCP/IP, or Web GUI with EDID management.
-
Professional Applications
Ideal for broadcasting, conferencing, live events, control rooms, and premium AV
installations.
CLA-VM42U
CLA-VM42U
Name
View Matrix
Model
CLA-VM42U

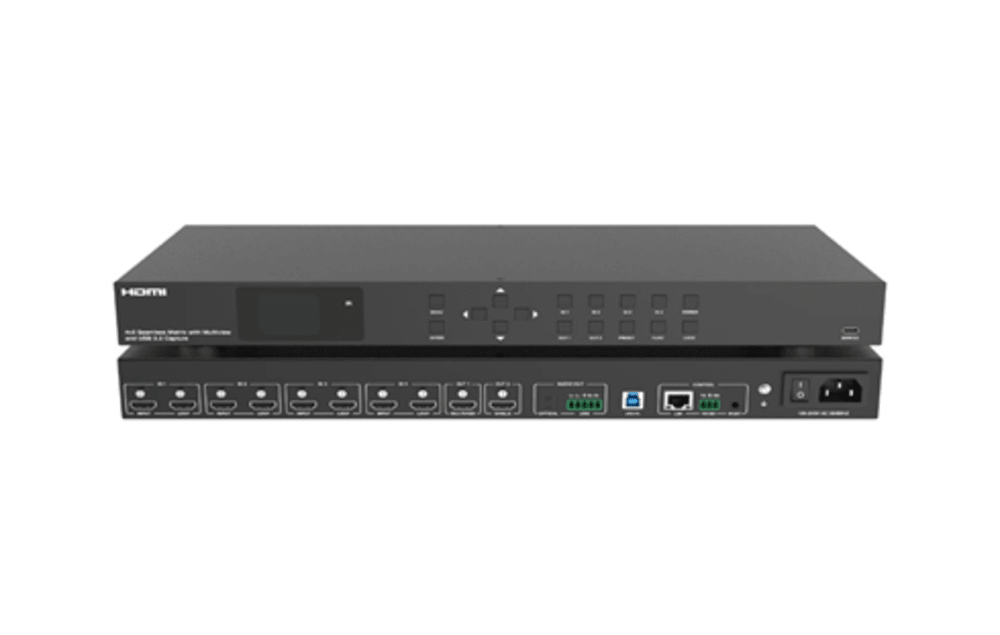

The CLA-VM42U ViewMatrix is a high-performance seamless matrix switcher designed for professional AV environments. It delivers stunning 4K@60Hz 4:4:4 resolution with full HDR support including HDR10, HDR10+, HLG, and Dolby Vision. Equipped with multiple HDMI inputs and outputs, USB 3.2 capture, and advanced multi-view modes such as PIP, PBP, and Quad layouts, it enables dynamic and impactful presentations. Seamless switching eliminates black screens and tearing, while flexible control options and audio management features ensure smooth integration into broadcasting, conferencing, and high-end AV installations.
| Model No. | CLA-VM42U |
|---|---|
| HDMI / HDCP | HDMI 2.0b / HDCP 2.2 & 1.x |
| Bandwidth | 18Gbps (HDMI), USB 3.2 Gen 1 up to 5Gbps |
| Input Resolution | All Full HD & 4K supported |
| Output Resolution | HDR Passthrough / HDR to SDR Conversion |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR Support | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats |
HDMI: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Optical: LPCM / Dolby / DTS 5.1CH Line Out: LPCM 2CH |
| Transmission Distance | HDMI: 3m | USB: 1.5m |
| ESD Protection | ±8kV Air / ±4kV Contact |
| Input Ports | 4 × HDMI (Type A) |
| Output Ports |
2 × HDMI Output 4 × HDMI Loop 1 × Optical Audio (S/PDIF) 1 × Analog Audio 1 × USB Capture (UVC/UAC) |
| Control Ports | RS-232, LAN (RJ45), USB-C (Service), IR Input |
| Dimensions | 440 × 200 × 44 mm |
| Weight | 2.65 kg |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 61.6W (Max) |
| Operating Temp | 0°C to 40°C |
| Storage Temp | -20°C to 60°C |
| Humidity | 20%–80% (Operating) |
